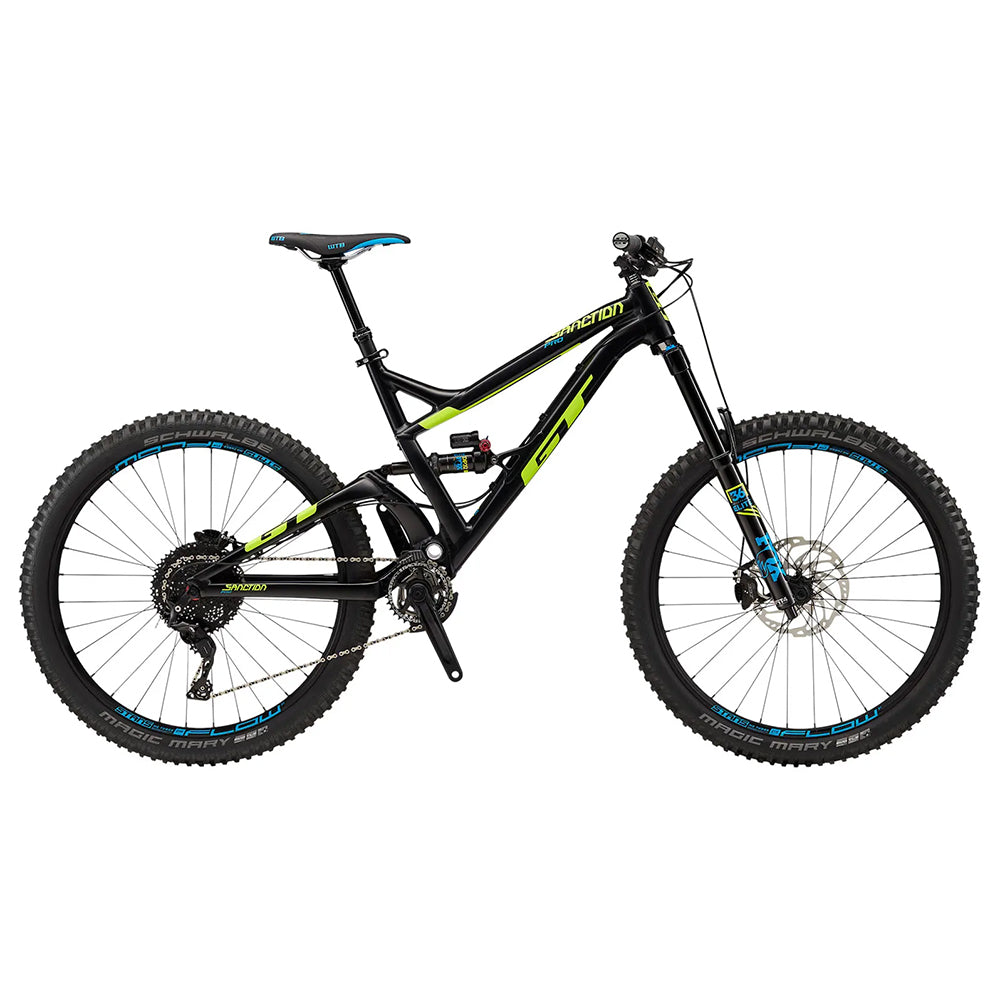

GT Sanction 2016 - 2019 Frame Parts

GT SANCTION 2016 - 2019 FRAME PARTS

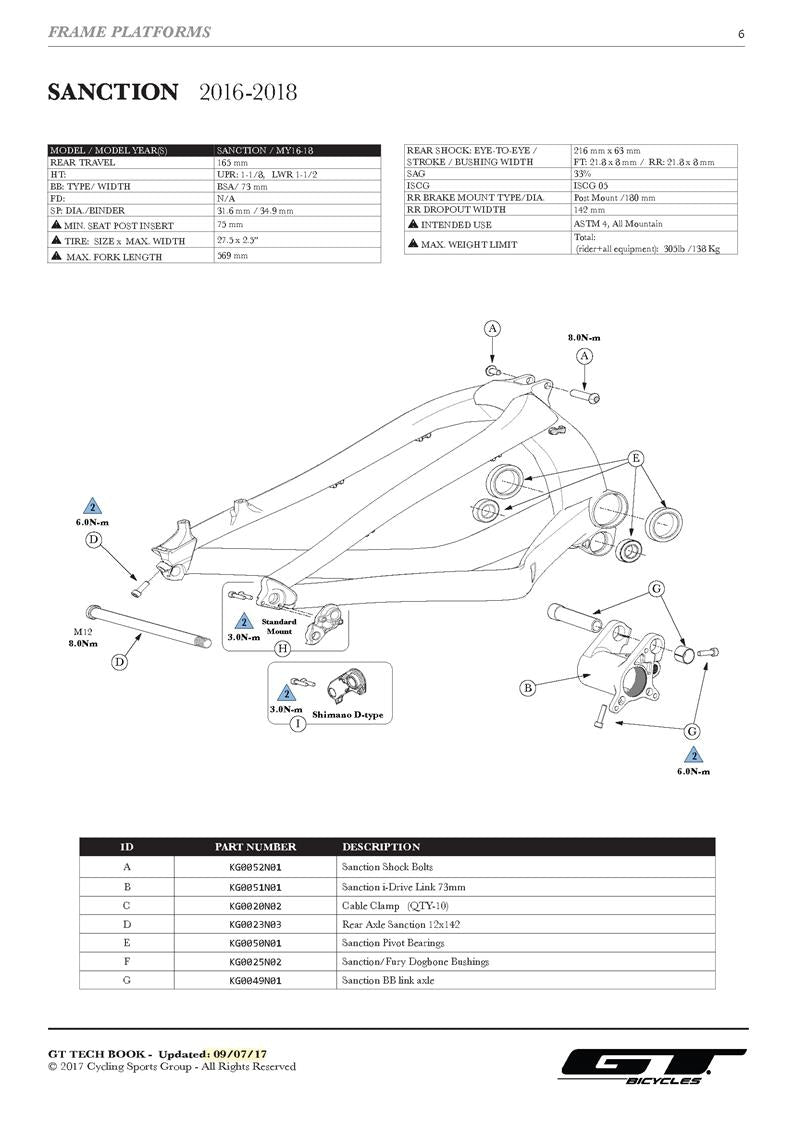

SPECIFICATIONS

Rear Travel - 165mm

Head Tube - UPR: 1-1/8, LWR 1-1/2

Bottom Bracket: Type / Width - BSA/73mm

Front Derailleur - N/A

Seat Post: Dia./Binder - 31.6mm / 34.9mm

Min. Seat Post Insert - 75 mm

Tire Size x Max. Width - 27.5 x 2.5"

Max. Fork Length - 569mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 216 mm x 63 mm, FT: 21.8 x 8 mm / RR: 21.8 x 8 mm

Sag - 33%

Chain Guide - ISCG05

Rear Brake Mount / Type - Post Mount /180 mm

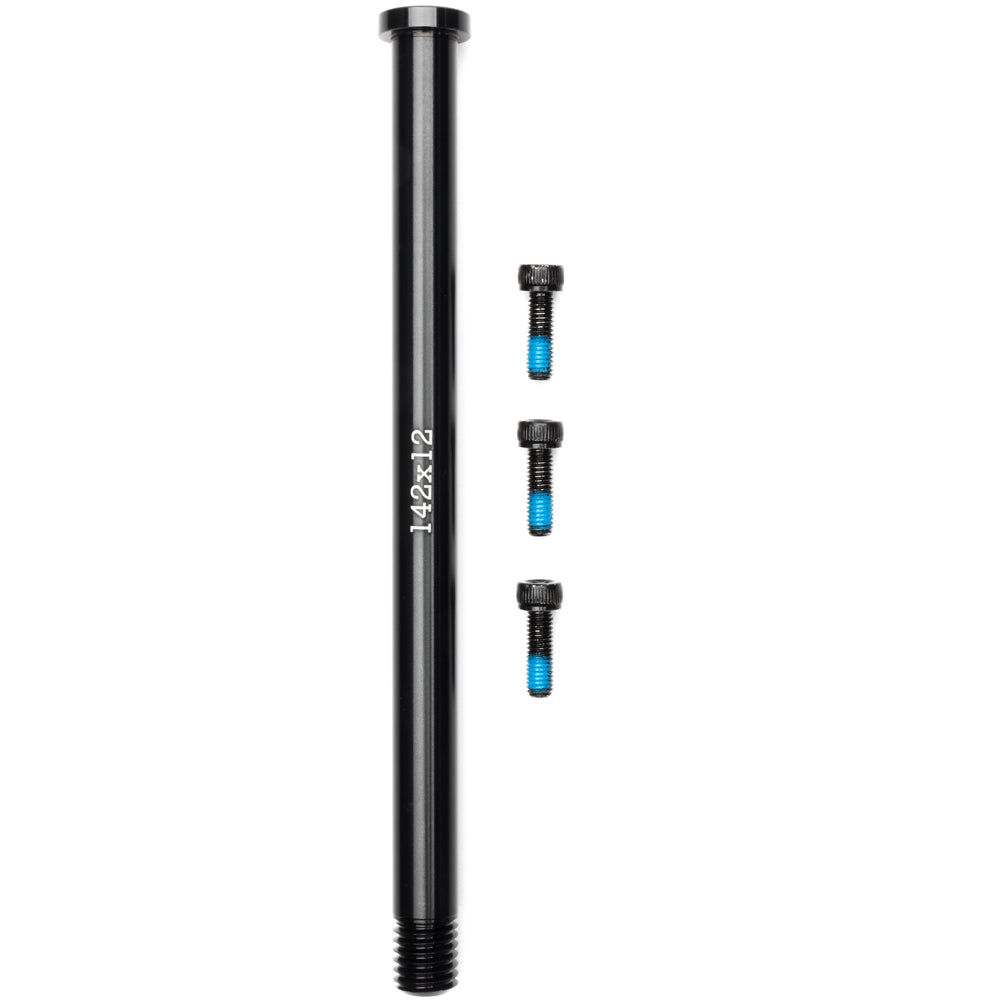

Rear Dropout Width - 142mm

Max. Weight Limit: Total - 138kg
