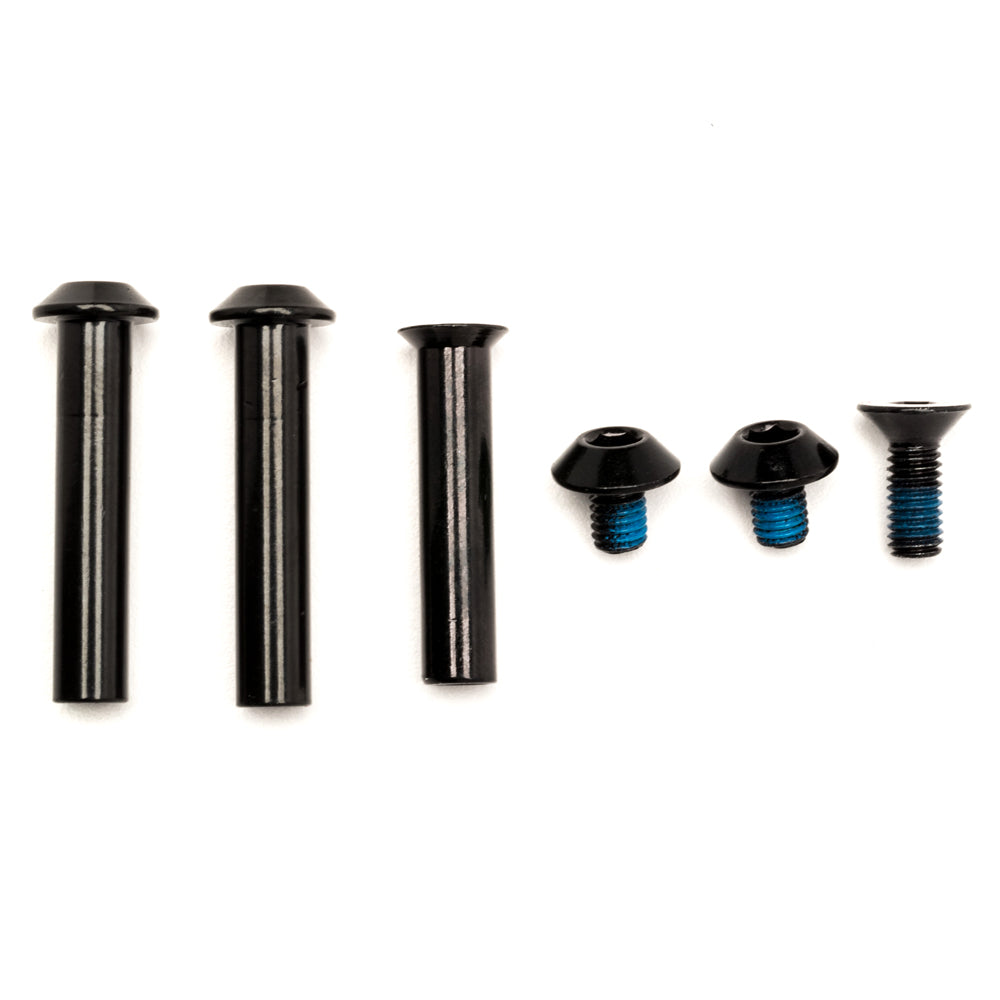

Cannondale Trigger Pivot Hardware Cannondale Trigger Pivot Hardware

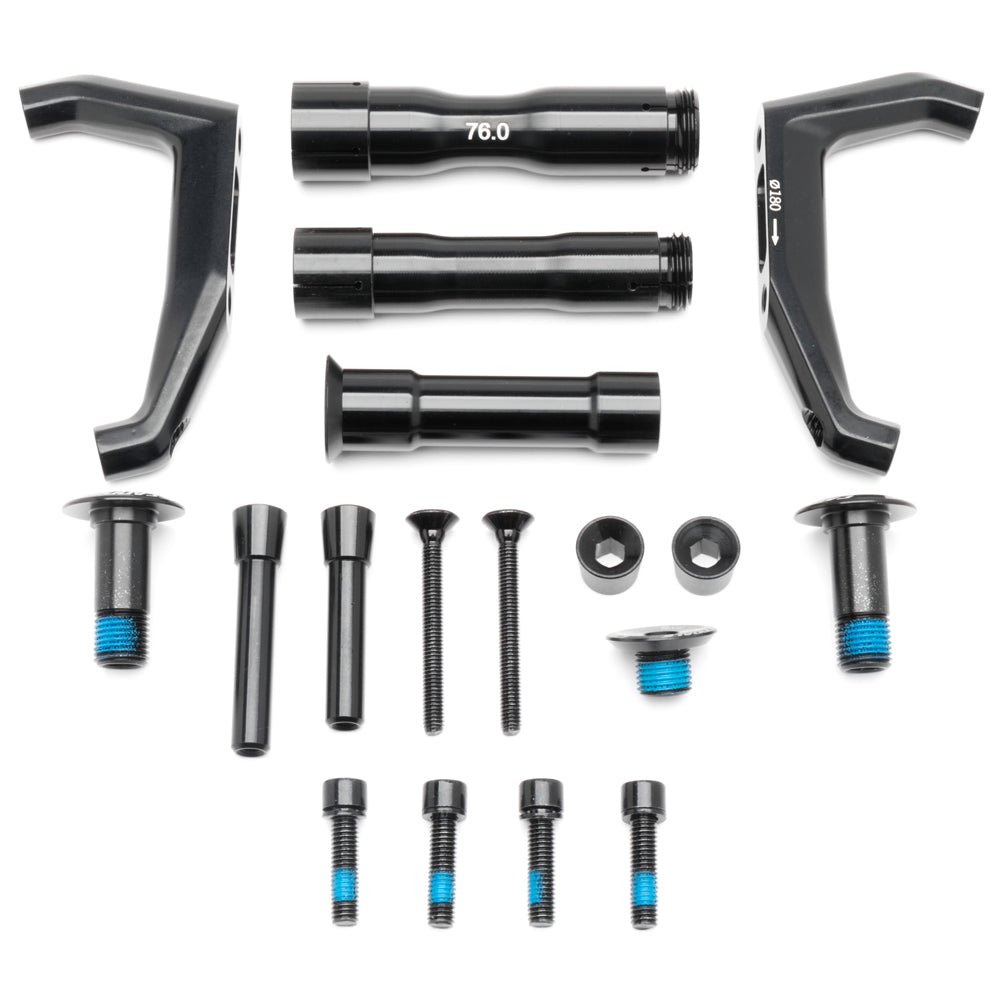

Cannondale Trigger Frame Pivot Hardware Kit Contains 73mm Lock'r axle Cannondale Trigger Frame Pivot Hardware Kit Contains 73mm Lock'r axle
Cannondale Hanger Jekyll Trigger Cujo Neo Habit Cannondale Hanger Jekyll Trigger Cujo Neo Habit

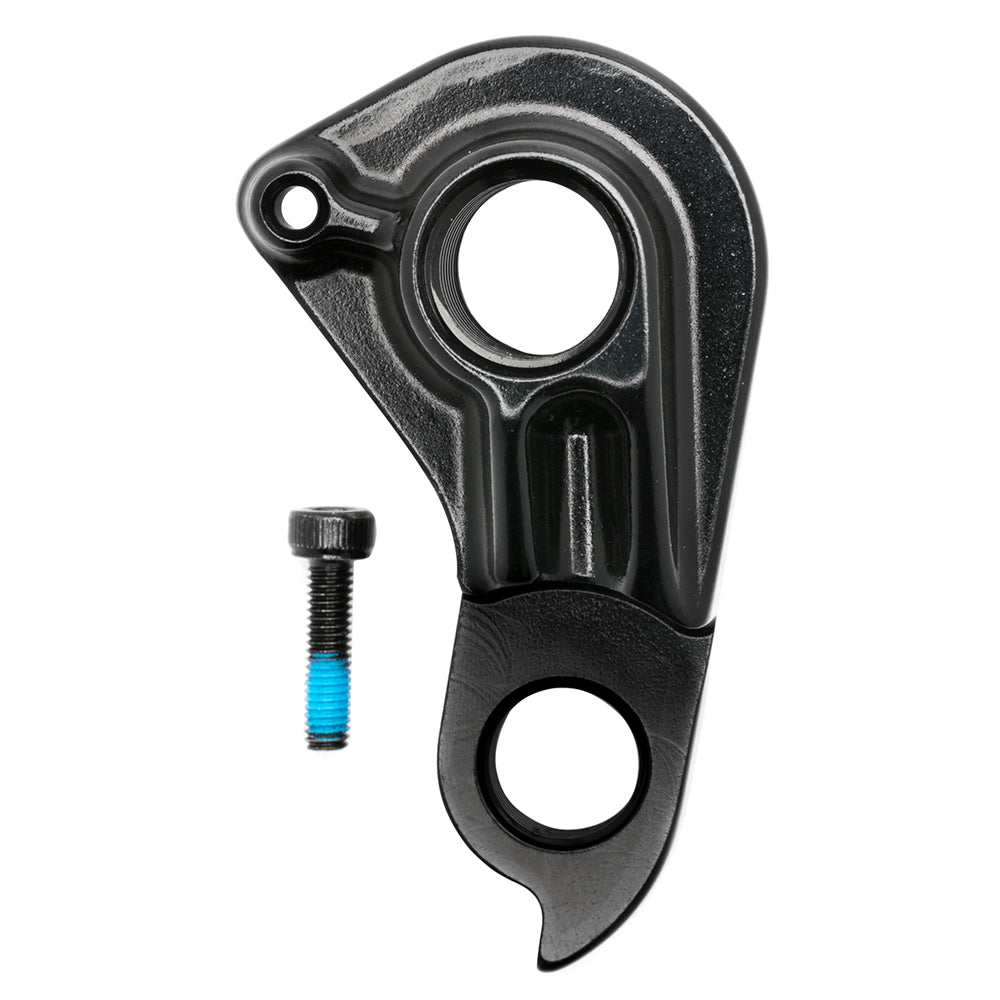

Cannondale Jekyll, Trigger Rear Derailleur Hanger Cannondale Jekyll, Trigger Rear Derailleur Hanger
Cannondale Brake Adapter Flat to 160mm Post Cannondale Brake Adapter Flat to 160mm Post

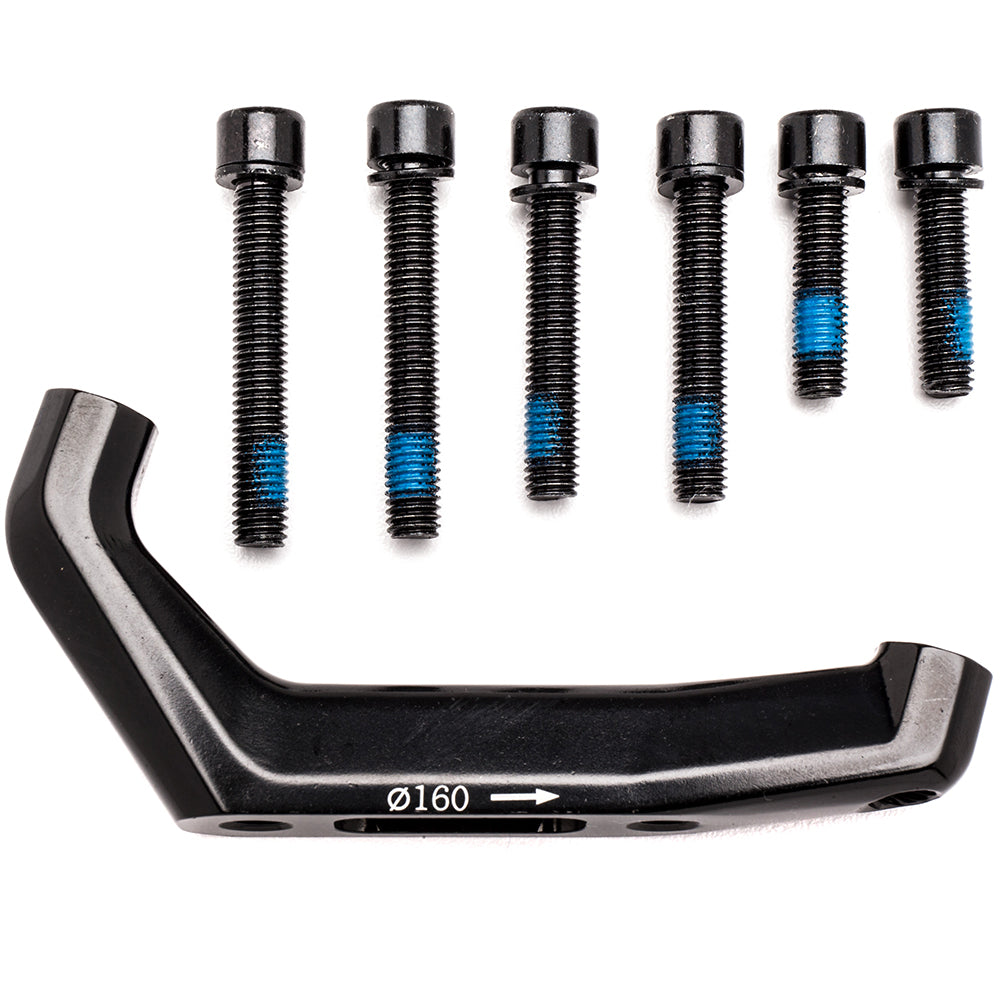

Cannondale Flat Mount Rear Disc Brake Adapter 160mm Cannondale Flat Mount Rear Disc Brake Adapter 160mm
Cannondale BB PF30 83/73mm Cannondale BB PF30 83/73mm

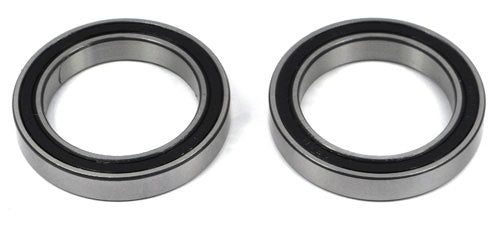

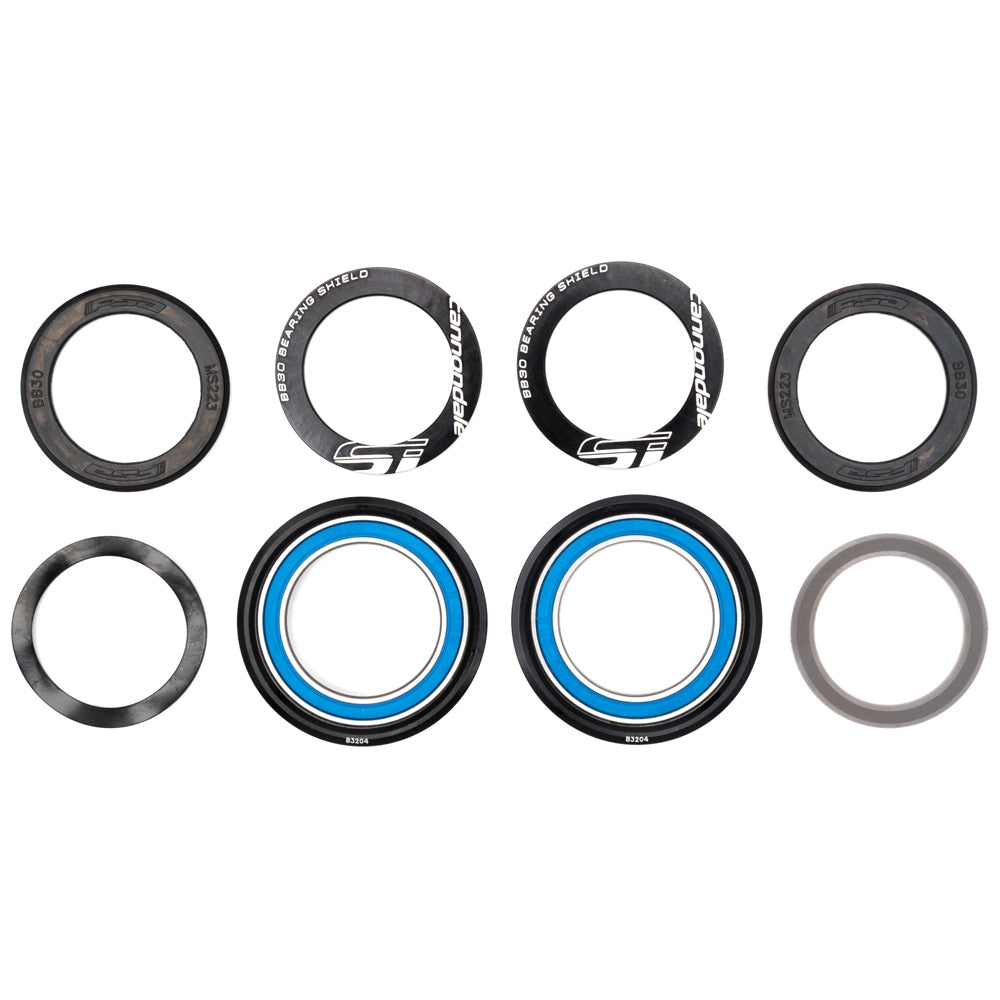

SI Bottom Bracket Bearings SI Bottom Bracket Bearings

Trigger 27.5 Spares 2018 -2019

  • $34.90
Tax included. Shipping calculated at checkout.
Only 1 left!

CANNONDALE TRIGGER 27.5" SPARES 2018 - 2019

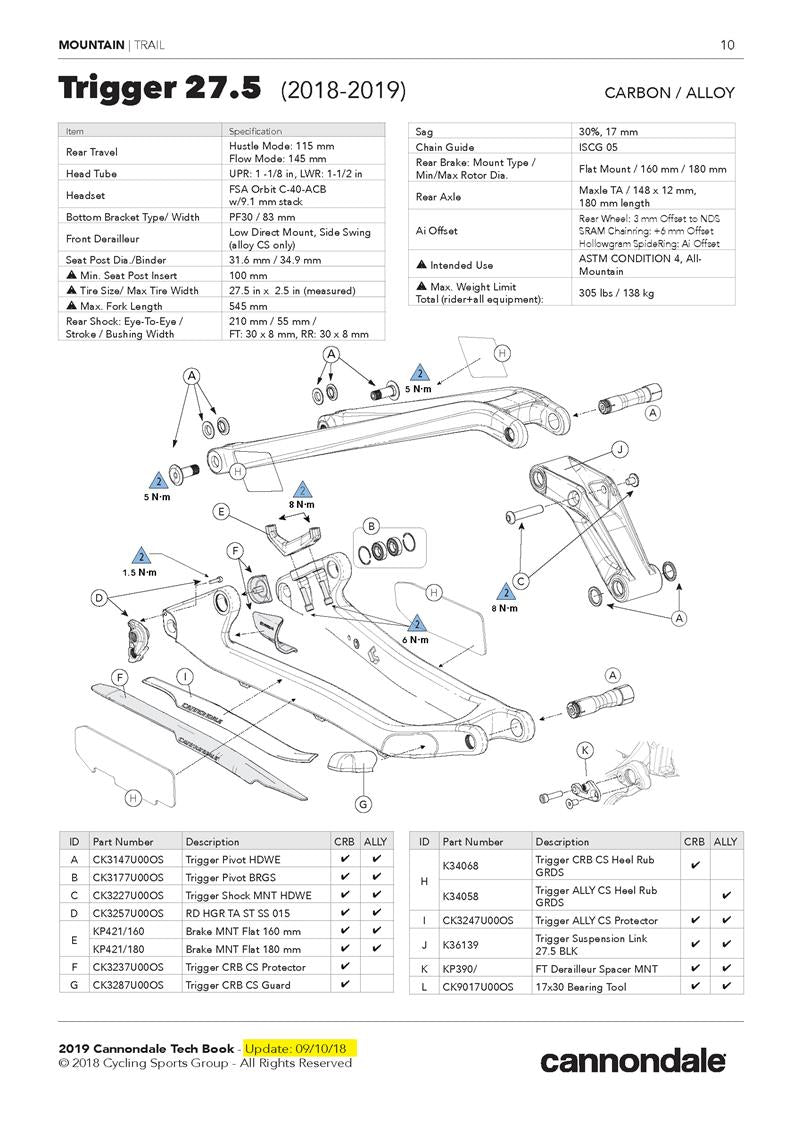

SPECIFICATIONS

Rear Travel - 115mm / 145mm

Head Tube - UPR: 1-1/2” LWR: 1.8”

Headset - FSA Orbit C-40-ACB w/9.1 mm stack

Bottom Bracket: Type / Width - PF30 / 83 mm

Front Derailleur - Low Direct Mount, Side Swing (alloy CS only)

Seat Post: Dia./Binder - 31.6mm / 34.9mm

Minimum Seat Post Insert - 100 mm

Tire Size x Maximum Width - 27.5” x 2.5” (measured)

Maximum Fork Length - 545mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 210 mm / 55 mm / FT: 30 x 8 mm, RR: 30 x 8 mm

Sag - 30%, 17 mm

Chain Guide - ISCG05

Rear Brake Mount / Type - Flat Mount

Min / Max Rotor Diameter - 160mm / 180mm

Axles: Type / Length - Maxle TA / 148 x 12 mm, 180 mm length Overall Length

Ai Offset - Rear Wheel: 3 mm Offset to NDS, SRAM Chainring: +6 mm Offset, Hollowgram SpideRing: Ai Offset

Maximum Weight Limit: Total - 138kg
